Block structure & serailzation

A zkopru block is submitted to the layer1 in a serialized form. Then, the checksum of the proposal becomes the proposal ID and is used for the challenge system.

Block structure

The zkopru block includes a header and a body.

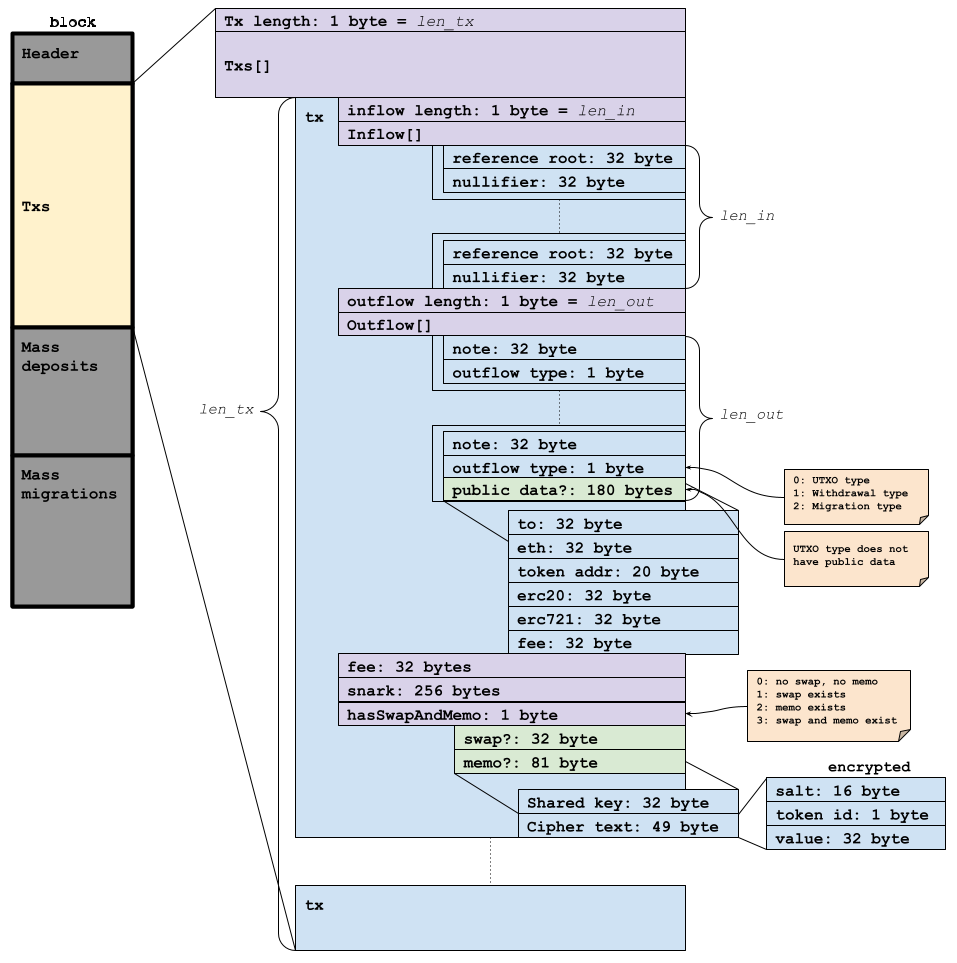

Block details

Edit diagram here

The first 372 bytes of the data should be the block header. The block header contains the following data:

Property

type

Proposer's address

address

Parent block hash

bytes32

Metadata

uint256

Fee

uint256

Latest UTXO tree's root

uint256

Latest UTXO tree's leaf index

uint256

Nullifier tree's root

bytes32

Latest withdrawal tree's root

uint256

Latest withdrawal tree's leaf index

uint256

Transactions' root

bytes32

Deposits' root

bytes32

Migrations' root

bytes32

Body

A block body consists of transactions, mass deposits, and mass migrations. Moreover, the block header should contain correct information from the body. If the header does not have the correct value, the proposer will get slashed through the challenge system.

Transactions

Tx serialization

Mass deposits

Mass migrations
